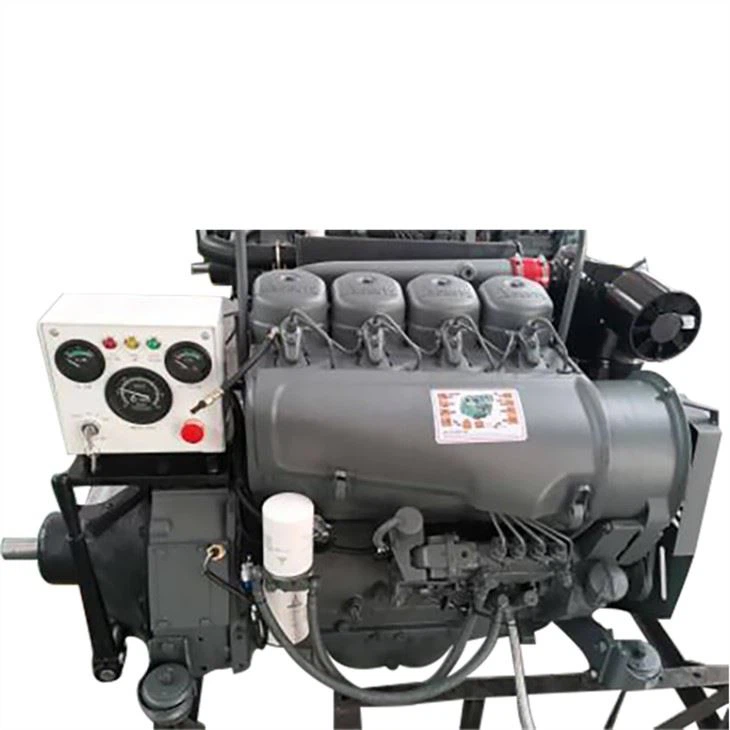

Deutz F4L912 Diesel Engine Assembly
| Model | F4L912 |
| Cylinder number | 4 cyls |
| Chamber type | Direct injection |
| Bore x stroke | 100/120 |
| DISPLACEMENT | 3.770 |
| 12-Hour Output Rating, KW/HP | 5.7 / 7.7 7.3 / 9.9 8.2 / 11.1 9.7 / 13.2 10.5 / 14.3 10.9 / 14.8 |
| Starting manner | Electric |
| VEHICLEMENT | 59(80) / 2800 |
| MAXIMUM TORQUE ACCORDING TO | 230 / 1600 |
| weight | 365KG |
Advantage
(1)Small seize,light weight ,low fuel consumption,long service time,easy starting and convenient maintenance ect.
(2)Wide application:engineering machineries, mining machineries, automobiles, agriculural equipments generating equipments, medium and small ship ect.
(3)Fine adaptablity: reliable in dry,hot cold weather and in poor water quality condition as well as in highland area, and low pollution requested working environment.Cold-starting ability even under extreme climatic conditions.
Part Number (combination Part Number) : 2242071(SAE2)(027 0749) / 2242050(SAE3)(027 0748) / 2102308(SAE4)(027 0747)
Stop Mouth Aperture : 447.7H7 / 409.58H7 / 361.95H7
Stop Mouth width : 12
Flywheel Shell width : 122-0.3
Threaded Hole Distribution Round : 466.7±0.3 / 428.6±0.3 / 381±0.3
Bolt Quantity : 12×M10
