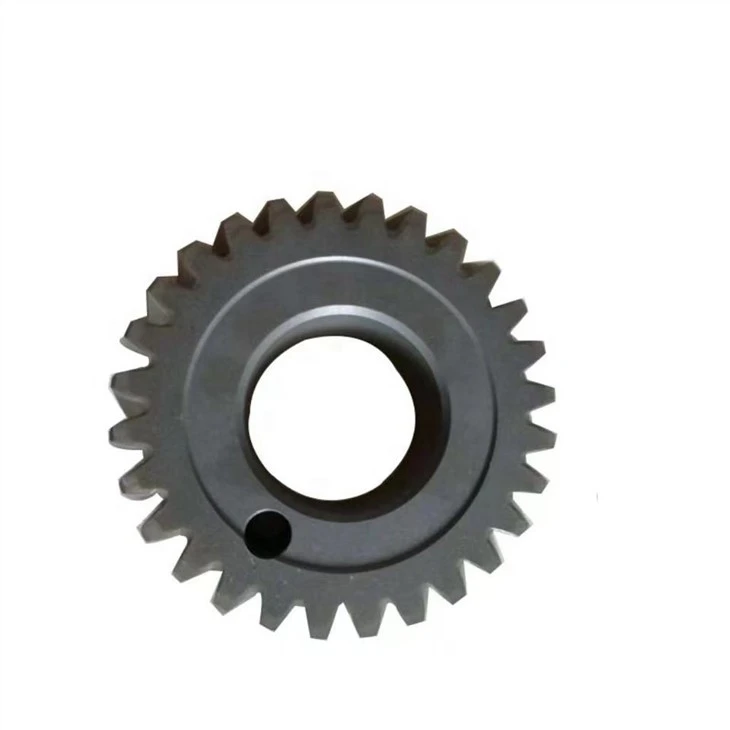

02237256 Deutz 912 913 914 diesel engine crankshaft gear
|
Engine model |
912 913 914 | OEM | 02237256 |
|
Number of teeth |
Z=28 |
weight |
0.602kg |
| Warranty |
12 months |
MOQ |
1 piece |

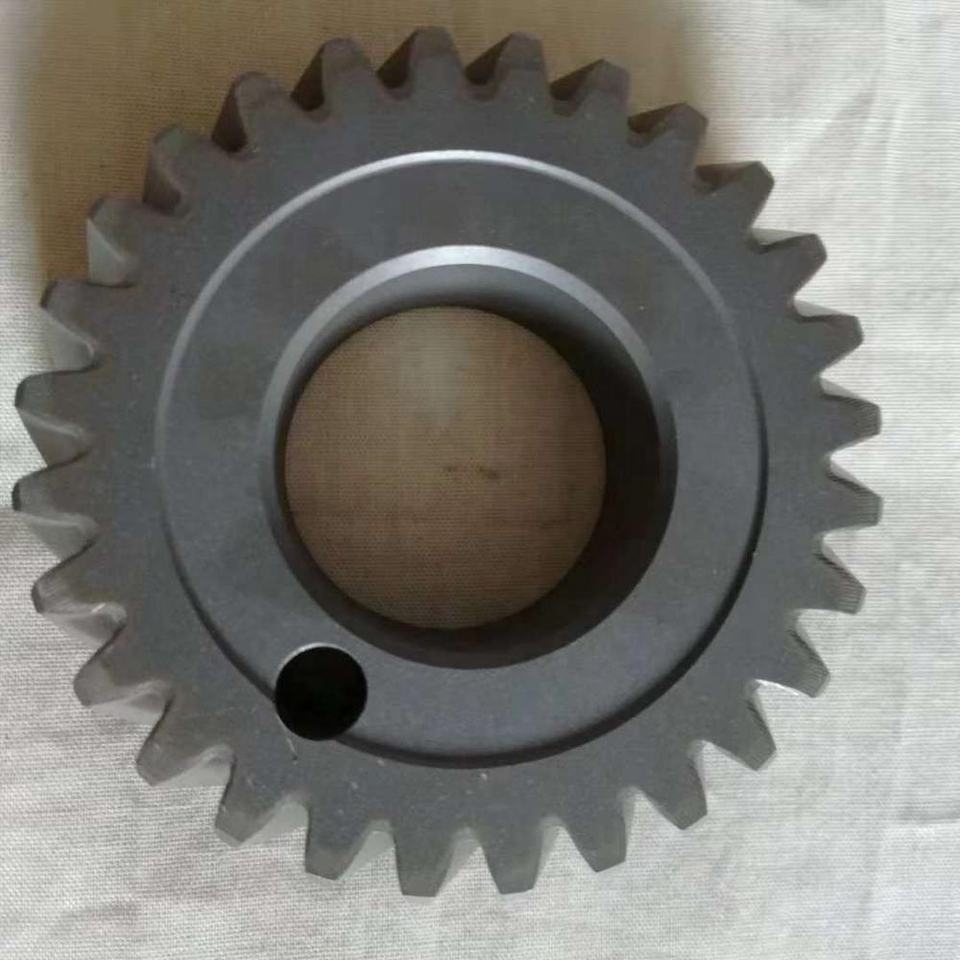

Crankshaft gear-1

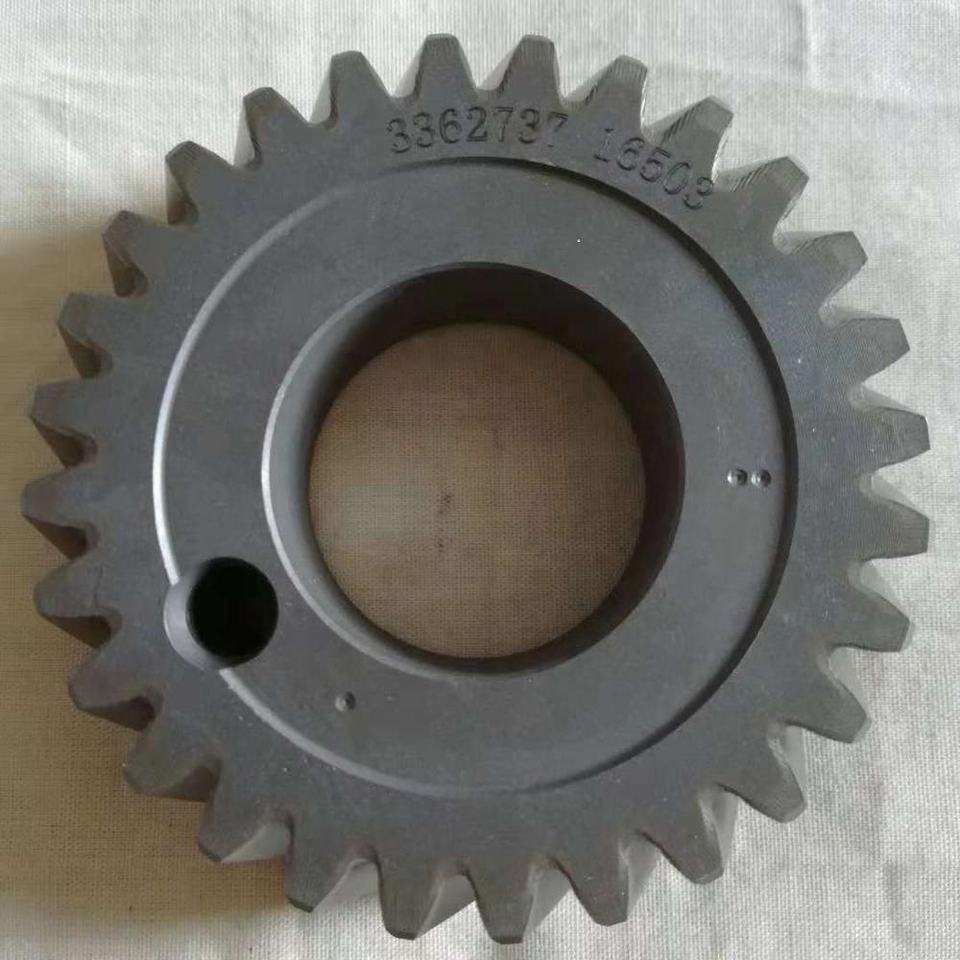

Crankshaft gear-2

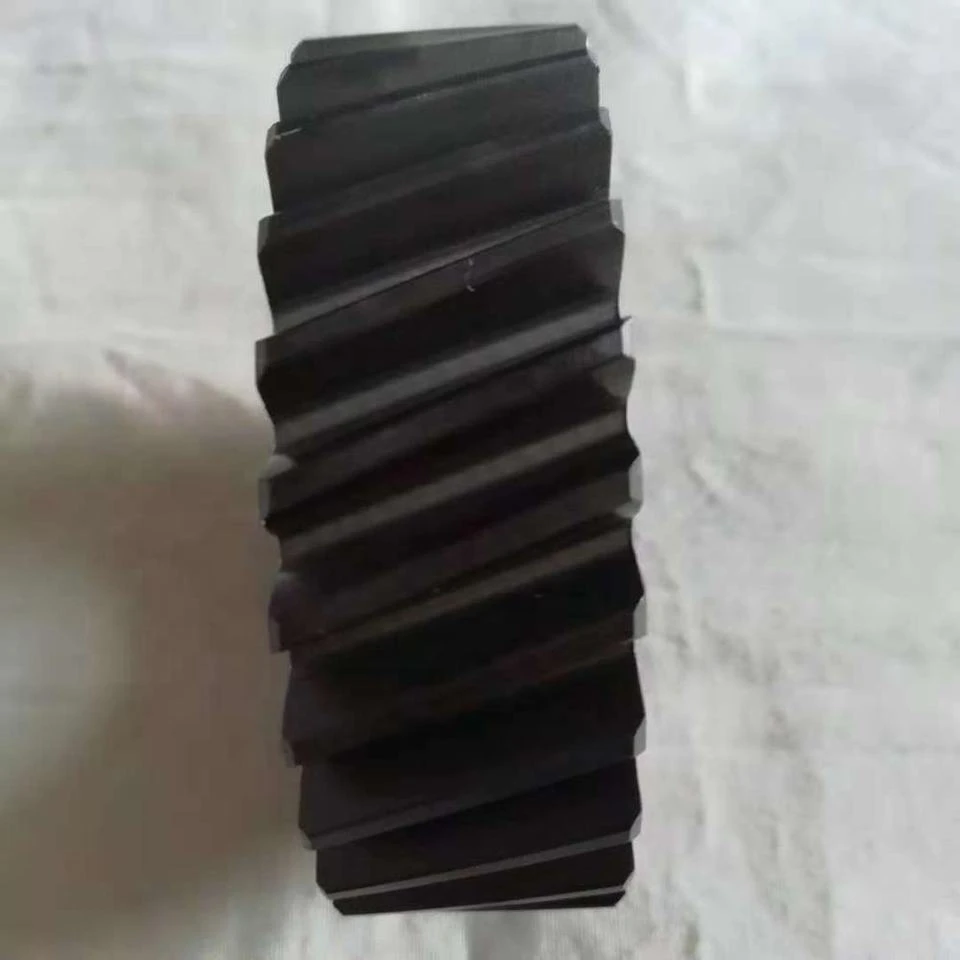

Crankshaft gear-3
Product description
Deutz 02237256 crankshaft gear: general number: 03362737 04156890 02237253, gear overall dimension: outer diameter: 80mm, inner diameter: 36mm, thickness: 24mm, number of teeth: Z=28, modulus: M=2.5, diameter of locating hole: 8mm, height of surface table at both ends: 1mm. There are two locating points on the gear end face. The first one is rotated to the left of locating hole to align with the third tooth slot, the second one is rotated to the left of locating hole to align with the twelfth tooth slot, and the gear is inclined to the left of helical tooth. The net weight of this crankshaft gear is 602g.
