02234078 Deutz FL511 engine Air cooled Cylinder liner:
|
Engine model |
FL511 |
OEM |
02234078 |
|
Diameter(D) |
100mm |
length |
186mm |
|
N.W. |
4.75 Kg |
package |
4pcs in one box |
|
Size of cartons |
32*35*24 CM |
G.W . |
20 Kg |
|
numbers in pallet |
192pcs |
Pallet N.W. |
960 kg |
Outsize drawing
|
A |
B |
D |
H |
L |
|
120mm |
109.85mm |
100mm |
mm |
186mm |

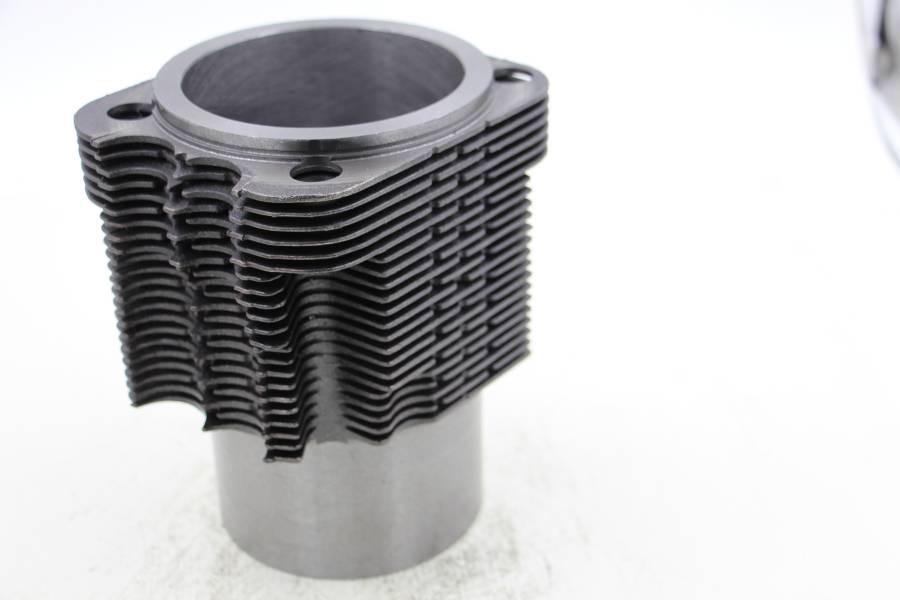

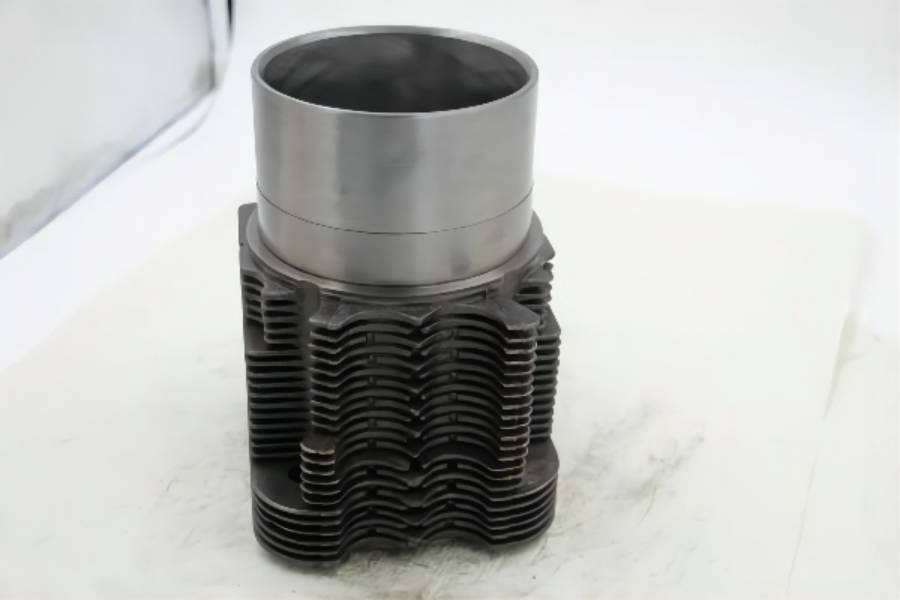

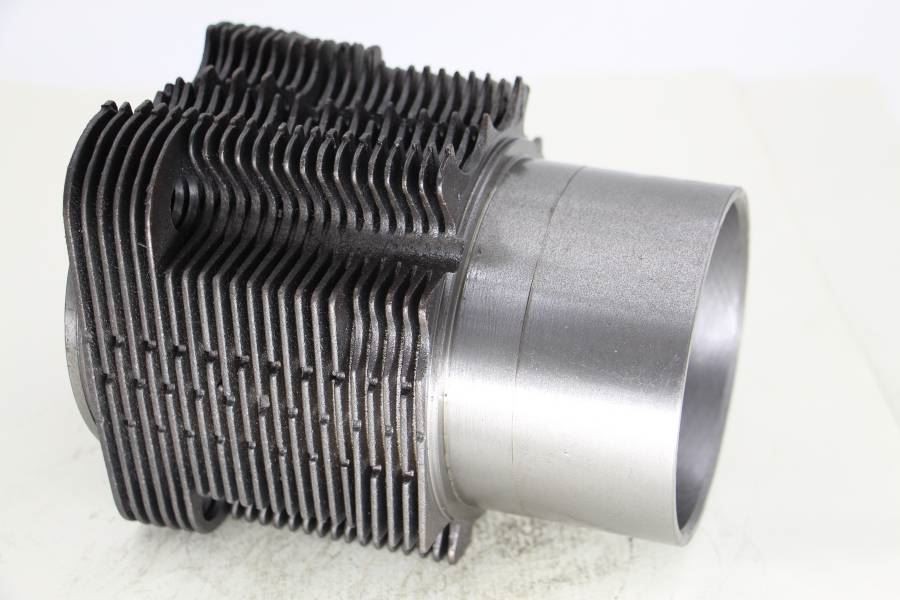

02234078 air-cooled cylinder liner is applicable to Deutz F2L511 engine. The single net weight of 02234078 air-cooled cylinder liner is 4.75 kg, and the general number is 02234078, 02233634, 02290637, 89083110.
This type of cylinder liner is applicable to DEUTZ 511 engine. It is made of alloy cast iron. The cylinder diameter is 100MM, the total length is 186MM, the installation height is 118.9, the outer diameter is 109.85, the flange is 120, and the radiator is 22.
Generally speaking, we use neutral cartons for packaging, with 4 pieces per box, the size of a single small box, and the size of plastic bags: 31 * 44.
